SIMLEAD Metal Drawer - 185mm Height Sides

King Slide

SIMLEAD is the world's only fully integrated Push-Open and Soft-Close drawer slide.

Product Description

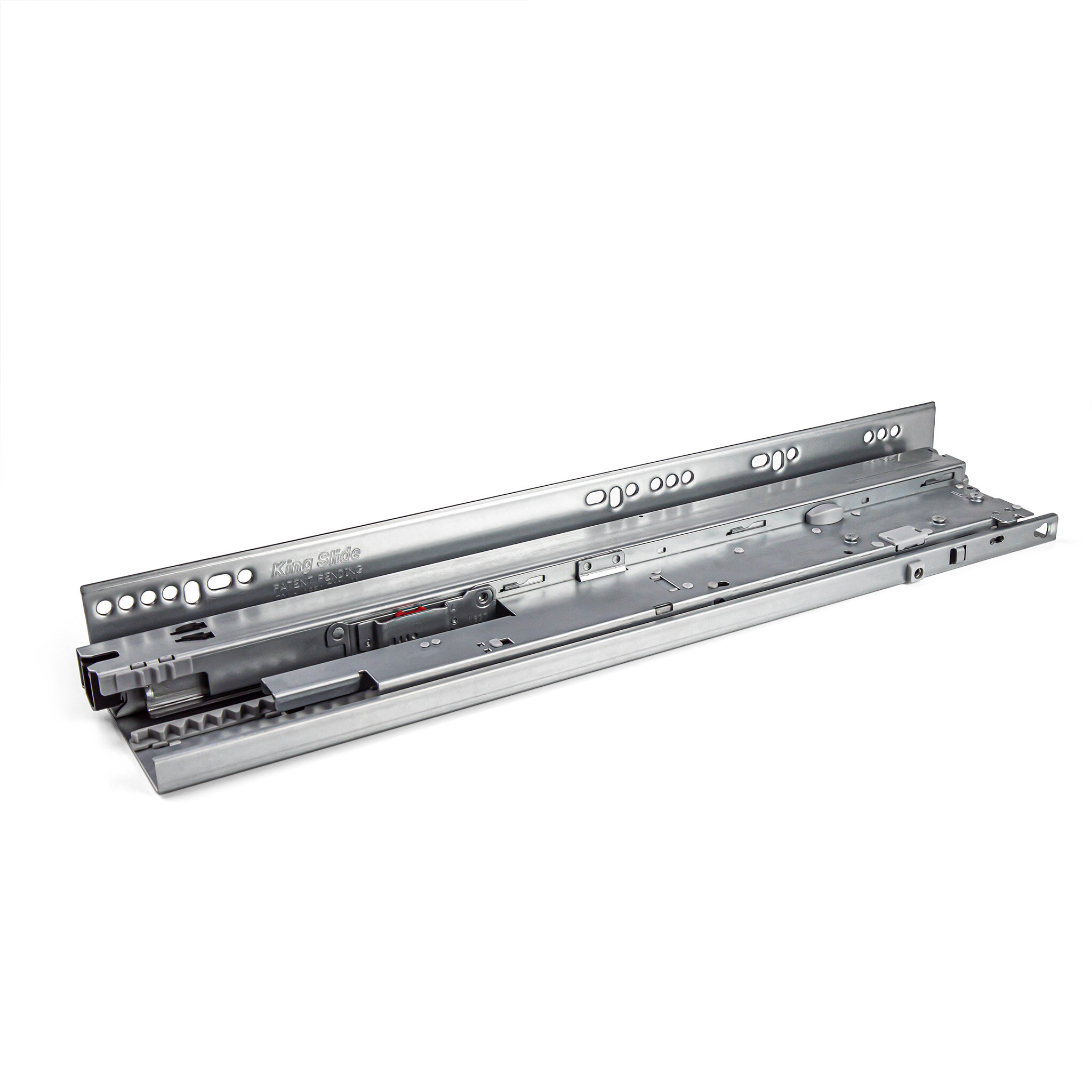

The SIMLEAD Metal Drawer System is the world’s only fully-integrated drawer system with Push-Open and Soft-Close features.

Continuous Ever-Active Push allows the drawer front to be pushed more than once, allowing true hands free operation. Use your elbow or your knee to push on the drawer a second time and it will continue to open. With the synchronization bar installed, the Push-Open can be activated with an Any Point Touch, simply by pushing at any location on the drawer front.

The Push mechanism being fully integrated into the slide, provides best in class motion and function. This design means the spring power of the Push is already deactivated when the drawer is closing, leading to a perfect soft-close every time with no possibility of bounce back.

King Slide has several safety features built into the drawer. First there is a switch on the bottom which turns off the Push-Open feature completely. This is excellent during transportation to job site, but also when small children are around to prevent accidental release of the drawer.

The optional Vibration Safety Device (VSD) offers an additional safety feature that locks the drawers in place in the event of the cabinet experiencing a significant vibration. This option is ideal for furniture installed in earthquake prone regions, but also has practical applications for recreational vehicles and trailers.

Product Advantages

  • Ever-Active Push-Open
  • Perfect Soft-Close
  • No Bouncebacks
  • Any Point Touch to open
  • Built-In Safety Features
Product Specifications
Closing Type Push-Open / Soft-Close
Drawer Side Height 185 mm
Drawer System SIMLEAD
Load Capacity 40kg (88lbs)
Introducing King Slide's SIMLEAD
King Slide's SIMLEAD In the Home
King Slide SIMLEAD Installation and Adjustments
