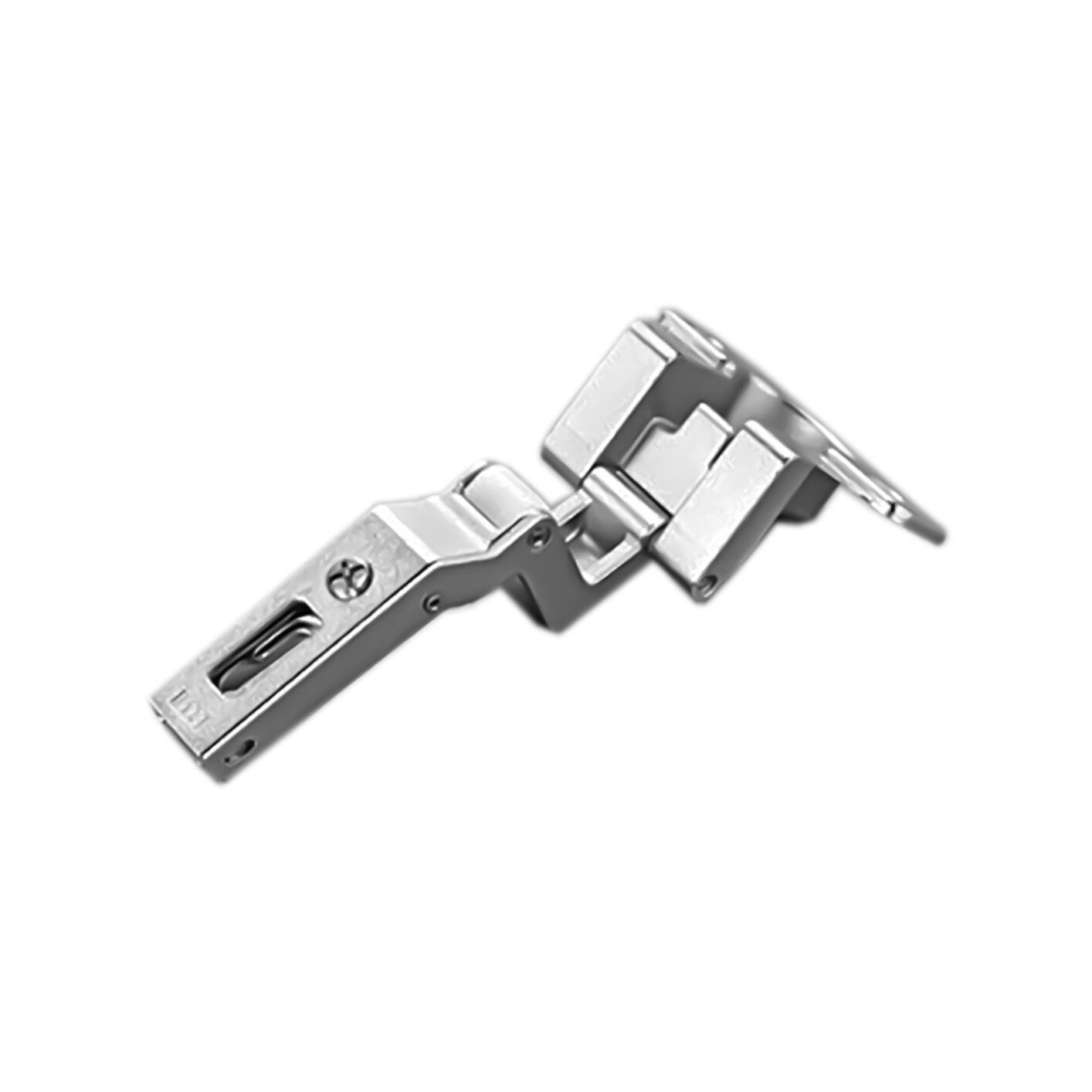

Salice 270 Degree Institutional Hinge with Self-Close

These institutional hinges are ideal for the most critical applications, where a high degree of stability, strength and endurance are required.
They are also certified for applications in public environments in conformity with FIRA Level 5 and ANSI Grade 1 requirements.




Features

• Bright nickel or titanium die-cast cup and arm.
• Sprung hinge (with spring) with self-closing capabilities.

Adjustments

• Compensating side adjustment from -3 mm to +3 mm.
• With mounting plates H=0 the negative side adjustment cannot be used.
• Height adjustment ±2 mm.
• Depth adjustment with Series 200 mounting plates +2.8 mm.
• Depth adjustment with Domi snap-on mounting plates from -0.5 mm to +2.8 mm.
• Anti-sliding safety stop.


Mounting plates

• Symmetrical and asymmetrical bright nickel plated steel or die-cast Series 200 mounting plates.
• Snap-on assembly on Domi mounting plates.
• Positioning with pre-determined stop on traditional Series 200 mounting plates.


Use POZIDRIVE No. 2 screwdrivers for all screws.
